Felling Drop Deck Tilt Trailers

3 Styles of Drop-Deck Tilt Trailers

Felling’s Drop-Deck Tilt trailer’s tilt beds tilt to the ground for loading or unload of equipment. Each style tilt operates in a different way.

• Pan Tilt is a gravity tilt, it uses gravity and a center pivot point for the tilt bed to tilt.

• IT-I (Industrial Drop Deck Tilt) tilts with the use of a cushion cylinder, gently lowers the tilt bed to the ground for loading.

• EZ-Tilt tilts/lowers the tilt bed to the ground via its rotating torsion axles, as axles rotate the tilt bed lowers to the ground.

Pan Tilt Series (Single or Tandem Axle)

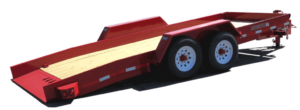

  • Felling Pan Series TrailersStructural Channel Tongue, Fabricated Steel Pan Sides, Jr. I-beam/Channel Crossmembers.
  • Load Capacities: 1,800 lbs. to 16,000 lbs.
  • Approximate Load Angle: 7° to 13°
  • (Model FT-6 T Option Galvanized Single Axle Shown)

Download Brochure

IT-I Tilt SeriesFelling IT-I Series Trailers

  • Cold Formed I-beam Main Frame & Jr. I-beam Crossmembers (single frame design).
  • Load Capacities: 7,380 lbs. to 16,000 lbs.
  • Approximate Load Angle: 13° to 16°
  • (Model FT-14-IT-I Shown)

Download Brochure

EZ-Tilt SeriesFelling EZ Tilt Series Trailers

  • Structural Channel Frame & Jr. I-beam Crossmembers (stacked frame design).
  • Load Capacities: 7,380 lbs. to 16,000 lbs.
  • Approximate Load Angle: 13° to 16°
  • (Model FT-16 IT-E Shown)

Download Brochure
