Felling Rigid Neck Semi Trailers

Felling Rigid Neck Semi Trailers

Transport your loads with confidence when you are pulling a Felling Step Deck Trailer. Felling’s OTR Over-the-Road Semi-trailers are constructed with engineered, cambered, fabricated main beams, 6″ structural channel side rails with tread plate covered wheels. 4″ Jr. I beam cross members, 12″ on center for robust strength. Plus these models are standard with rub rail & stake pockets with double pipe spools to make securing any load easier.

MX-L (Low) & MX-H (High) Series

  • Engineered, Cambered, Fabricated Main Beams, 8″ Structural Channel Side Rails, Tread Plate Covered Wheels
  • Crossmembers: 6″ Jr. I-beam, on 16″ center
  • Self- Cleaning 5′ Angle Iron Beavertail & 5′ Ramps
  • Load Capacities:

– 50,000 lbs. Distributed, 37,000 lbs. in 16′
– 70,000 lbs. Distributed, 45,000 lbs. in 10′, 41,500 in 4′
– 80,000 lbs. Distributed, 52,000 lbs. in 10′, 50,000 in 4′
– 100,000 lbs. Distributed, 65,000 lbs. in 10′, 59,500 in 4′

  • (Model FT-50-2 MX-L Shown)

Download Brochure

OTR-L (Low) & OTR-H (High)

  • FT-70-2-OTR-960x342Engineered, Cambered, Fabricated Main Beams, 6″ Structural Channel Rails, Tread Plate Covered Wheels.
  • Crossmembers: 4″ Jr. I-beam, on 12″ center
  • Load Capacities

– 70,000 lbs. Distributed, 45,000 lbs. in 10′, 41,500 in 4′
– 80,000 lbs. Distributed, 52,000 lbs. in 10′, 50,000 in 4′
– 100,000 lbs. Distributed, 65,000 lbs. in 10′, 59,500 in 4′

  • Rub Rail & Stake Pockets with Double Pipe Spools

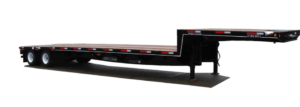

  • (Model FT-70-2 OTR-L Shown)

Download Brochure

NN LX (Low) & HX (High) Series

  • FT-70-2-NNLX--1024x227Engineered, Cambered, Fabricated Main Beams, 10″ Structural Channel Side Rails
  • Crossmembers: 6″ I-beam, on 16″ Center, Open Wheel Wells
  • Beavertail: 3′ Self-Cleaning Angle Iron
  • Ramps: 24″x72″ Stand-up Self-Cleaning w/Spring Assist.
  • Load Capacities:

– 70,000 lbs. Distributed, 52,500 lbs. in 16′
– 80,000 lbs. Distributed, 60,000 lbs. in 16′
– 100,000 lbs. Distributed, 75,000 lbs. in 16′

  • (Model FT-70-2 NN-L Shown)

Download Brochure

HX (Flat Deck) Series

  • FT-80-3-HX-1040-1024x312Engineered, Cambered, Fabricated Main Beams, 6″ Structural Channel Side Rails.
  • Crossmembers: 4″ Jr. I-beam, on 12″ Center
  • Load Capacities:

– 70,000 lbs. Distributed, 45,000 lbs. in 10′, 41,500 in 4′
– 80,000 lbs. Distributed, 52,000 lbs. in 10′, 50,000 in 4′
– 100,000 lbs. Distributed, 65,000 lbs. in 10′, 59,500 in 4′

  • Rub Rail & Stake Pockets with Double Pipe Spools
  • (Model FT-80-3 HX Shown)

Download Brochure
