Boxer Attachments
accomplish more tasks with your existing machinery
Boxer Attachments for compact utility loaders elevate productivity and versatility across multiple industries. These durable, quick-attach implements—from buckets and augers to breakers and grapples—turn a single skid-steer into a multi-function powerhouse. Designed for tough jobs in construction, landscaping, snow removal, and more, each attachment maximizes efficiency without sacrificing performance
Choose your model
Auger Bits & Drives

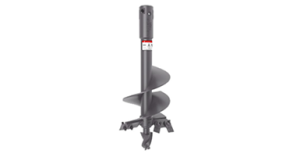

Medium Duty
| Diameter | 6″ up to 36″ |
| Length | 36″ |
| Style | HDF |
| Weight | 60 to 185 lbs |
| Download Brochure | |

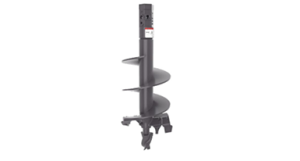

Rock Augers
| Diameter | 6″ up to 36″ |
| Length | 36″ |
| Style | ROCK |
| Weight | 60 to 175 lbs |
| Download Brochure | |

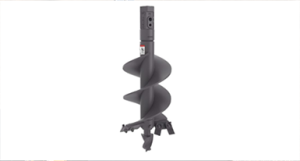

Heavy Duty
| Diameter | 30″ & 36″ |
| Length | 36″ |
| Style | HTF |
| Weight | 186 and 205 lbs |
| Download Brochure | |

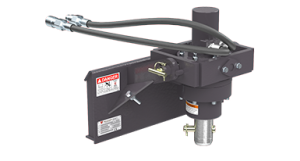

X900 Auger Drive
| Max Auger Diameter | 15″ |
| Min. Hydraulic Flow | 8 GPM |
| Max Hydraulic Flow | 16 GPM |
| Torque | 770 to 1,155 ft/lb |
| Download Brochure | |
X1500 Auger Drive
| Max Auger Diameter | 30″ |
| Min. Hydraulic Flow | 8 GPM |
| Max Hydraulic Flow | 16 GPM |
| Torque | 1,541 to 2,311 ft/lb |
| Download Brochure | |
Angle Brooms
Hydraulic Angle
| Width | 48″ |
| Hydraulic Flow | Various Options |
| Bristles | Poly/Wire Mix |
| Weight | 380 lbs |
| Download Brochure | |
Manual Angle
| Width | 42″ and 48″ |
| Hydraulic Flow | Various Options |
| Bristles | 100% Poly or Poly/Wire Mix |
| Weight | 340 to 380 lbs |
| Download Brochure | |
Buckets

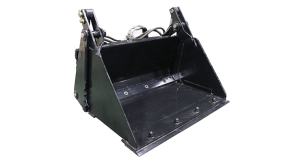

4 in 1
| Width (Standard Duty) | 60″, 66″ & 72″ |
| Capacity | .53 to .64 cu/yd |
| BOE | Optional |
| Weight | 585 to 655 lbs |
| Download Brochure | |

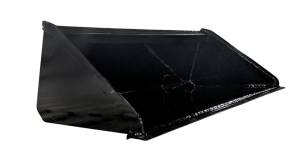

Light Material
| Width (Standard Duty) | 84″ & 96″ |
| Capacity | 1.6 & 2 cu/yd |
| BOE | Optional |
| Weight | 740 to 1,112 lbs |
| Download Brochure | |

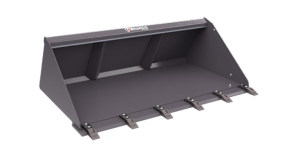

Low Profile
| Width (Standard Floor) | 60″ to 84″ |
| Capacity | Various Options |
| BOE | Optional |
| Weight | 429 to 683 lbs |
| Download Brochure | |

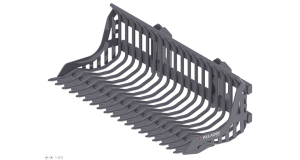

Rock Buckets
| Width (Heavy Duty) | 66″ to 84″ |
| Tine Spacing | 2″ |
| BOE | N/A |
| Weight | 680 to 692 lbs |
| Download Brochure | |
Grapples

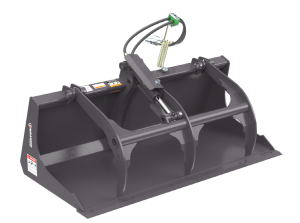

Scrap Grapples
| Width | 36″, 42″ & 48″ |
| Grapple Opening | 29″ |
| Rated Operating Capacity | 2,500 lbs |
| Weight | 281 to 329 lbs |
| Download Brochure | |
Brush Grapples
| Width | 42″, 48″ & 54″ |
| Grapple Opening | 29″ |
| Rated Operating Capacity | 2,500 lbs |
| Weight | 256 to 283 lbs |
| Download Brochure | |

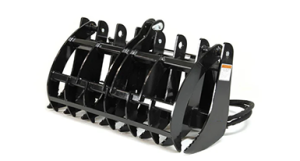

Root Rake
| Width | 42″ & 48″ |
| Grapple Opening | 29″ |
| Rated Operating Capacity | 2,500 lbs |
| Weight | 256 and 275 lbs |
| Download Brochure | |
Landscaping

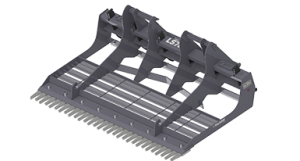

Land Sculptor
| Width (Bare Unit) | 78″ |
| Overall Length | 43.3″ |
| Overall Height | 22.9″ |
| Weight | 515 lbs |
| Download Brochure | |
Tiller
| Tilling Width | 66″ & 78″ |
| Tilling Depth | 6″ |
| Hydraulic Flow | 1-28 or 29-44 GPM |
| Weight | 660/1,110 lbs |
| Download Brochure | |

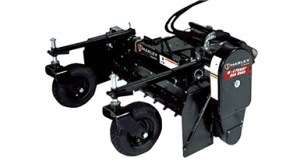

Landscape Rake
| Width | 66″ & 76″ |
| Raking Width | 62″ & 72″ |
| Height | 39.1″ |
| Weight | 1,495/1,695 lbs |
| Download Brochure | |

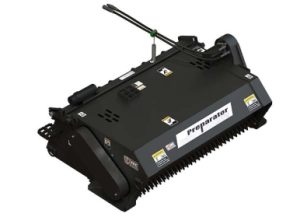

Preparator
| Width | 66″ & 76″ |
| Raking Width | 62″ & 72″ |
| Height | 39.1″ |
| Weight | 1,495/1,695 lbs |
| Download Brochure | |
Pallet Forks
Trenchers

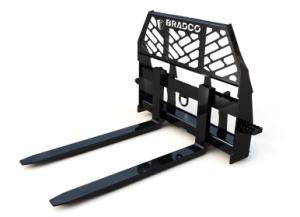

Signature Series
| Pallet Forks | 42″, 48″, 60″ & 72″ |
| Class II Weight Rating | 3,750 to 6,200 lbs |
| Width | 55″ |
| Weight | Varies With Options |
| Download Brochure | |
625 Series
| Hydraulic Flow | 12-25 GPM |
| Hoses | Included |
| Weight | 850 lbs |
| Download Brochure | |
640 Series
| Hydraulic Flow | 18-45 GPM |
| Hoses | Included |
| Weight | 850 to 1,100 lbs |
| Download Brochure | |

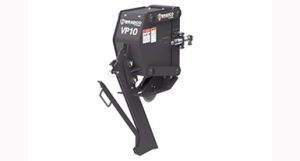

Vibratory Plow and Blades

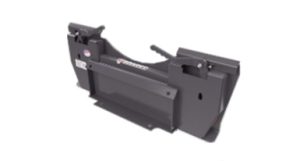

Adapter Plates
BR-19733
| Hydraulic Flow Range | 8-11 GPM |
| Depth | 36″ |
| Width | 24.5″ |
| Weight | 510 lbs |
| Download Brochure | |
BR-19734
| Hydraulic Flow Range | 10-14 GPM |
| Depth | 36″ |
| Width | 24.5″ |
| Weight | 510 lbs |
| Download Brochure | |
Tilt Attach
| Class | Heavy Duty |
| Tilt | +/- 14° |
| Weight | 400 lbs |
| Download Brochure | |
Why Choose Boxer Attachments?
Wide Task Compatibility – With attachments like augers, sweepers, breakers, grapples, and trenchers, Boxer machines easily adapt to diverse jobsite needs .
Quick-Attach System – Securely mount and switch implements in seconds using standardized mounting plates and hydraulic quick-hitches, reducing downtime.
Built for Durability – Fabricated with reinforced steel, heavy-gauge components, and commercial-grade hydraulics for long life in demanding conditions.
OEM Integration – Boxer-branded attachments ensure optimal fit, reliable function, and seamless compatibility across models.
Dealer Support & Warranty – Full parts, service, and warranty coverage from Boxer’s dealer network helps keep equipment job-ready.
Benefits Snapshot
- Task-Specific Efficiency – Swap attachments on the fly to match the work, increasing machine utility.
- Versatility in One Unit – Save time and budget by using a Boxer loader with matched implements.
- Peak Performance – OEM design means reliable hydraulic integration and precise functionality.
- Heavy-Duty Construction – Built to withstand harsh environments and tough workloads.
- Support & Service – Comprehensive dealer backup with access to parts, service, and technical expertise.
Boxer attachments are optimized for Boxer loaders, but may fit other brands with adapter plates or quick-hitch systems. Always check mounting compatibility.
Regularly inspect hoses, pivot points, fasteners, and tool wear. Lubricate as recommended, clear debris, and follow the maintenance schedule in the manufacturer’s manuals.
For brush and root cleanup, choose brush/root grapples. Use log grapples for lifting and moving timber. Scrap grapples are best for loose construction debris.
Auger bit depth typically ranges up to 4 ft. Extensions are available to dig deeper holes subject to hydraulic flow and drive capacity.
Yes—Boxer vibratory plows generate up to 5,000 lb of force and handle a variety of soils, including compacted or moderately rocky ground.
