FRD-Furukawa CW III Compaction Wheels are ideal when you need reliable soil compaction with fewer passes, reduced equipment fatigue, and long service life. With rugged design, sealed bearings, and flexible sizing, they help you meet jobsite compaction requirements more efficiently. Contact Tracey Road Equipment today to see which CW model fits your carrier, get pricing, or arrange a demonstration.

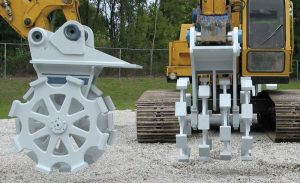

FRD-Furukawa Compaction Wheels
Compaction of large lift and constant boom down pressure all take their toll on standard static compaction wheels.
FRD-Furukawa Compaction Wheels (CW III Series) are engineered for delivering dependable trench and backfill compaction from your excavator or backhoe. Built for durability, high loading, and broad applicability, these wheels let you compress material from the bottom up—reducing settling, enhancing soil density, and helping you hit compaction specs fast.
Choose your model
CW18 PIII
| Wheel Width | 17″ |
| Number of Wheels | 3 |
| Wheel Diameter | 30″ |
| Weight | 1,200 Lbs |
| Download Brochure | |
CW24 PIII
| Wheel Width | 23″ |
| Number of Wheels | 3 |
| Wheel Diameter | 40″ |
| Weight | 2,380 Lbs |
| Download Brochure | |
CW36 PIII
| Wheel Width | 35″ |
| Number of Wheels | 4 |
| Wheel Diameter | 40″ |
| Weight | 3,350 Lbs |
| Download Brochure | |
Why Choose FRD-Furukawa Compaction Wheels?
Cast manganese steel one-piece wheel design provides high wear resistance without welds to fatigue.
Sealed composite bearings reduce contamination and extend service life under heavy loads.
Floating top-mount boss for easier mounting, plus split tapered bushings for simpler disassembly and maintenance.
Available in multiple widths (18″, 24″, 36″) to match common trench or backfill widths.
These wheels are used for compacting backfill, trenches, utility lines, and places where you need uniform soil compaction from the bottom up.
Yes—CW III Series wheels are built for compatibility with common excavators and backhoes, using floating top-mount bosses and hardware that match OEM pin centers.
Very durable. The wheels are cast from manganese steel (one-piece, weld-free) and use sealed composite bearings to resist dirt and water, extending life significantly.
Grease the shaft ends regularly, check for loose bushings or mounting pins, inspect wheels for wear, and ensure the bearings remain sealed and clean.
Choose based on your trench or backfill width. For narrow trenches, go with 18″ or 24″; for wider backfill widths, the 36″ model gives more coverage and fewer passes.
designed for use in narrow trenches with a footprint of 12″ and 18″ respectively
