FRD-Furukawa Plate Compactors are ideal when you need efficient, powerful compaction delivered from your carrier machine. With a range of sizes, strong impulse force, rugged construction, and mounting flexibility, these tools cut down job time, reduce the need for walk-behinds, and deliver reliable results in trenches, around foundations, and on demanding compaction jobs. Contact Tracey Road Equipment today to compare HP models, match them to your carrier, and get setup pricing.
FRD-Furukawa Plate Compactors
designed to work anywhere a boom can reach in trenches, around foundations, on slopes or seawalls.
FRD-Furukawa Plate Compactors deliver powerful, high-frequency vibration and impact force in a compact package. Built for excavators and backhoes, these plate compactors reach deep into trenches, around foundations, on slopes, and seawalls—where walk-behind unit’s struggle. When you need precision compaction with carrier-mounted strength, FRD’s plate compactors get the job done.
Choose your model

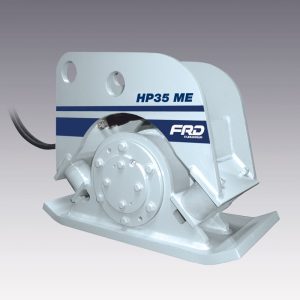

HP35 ME
| Impulse Force | 3,000 lbs |
| Cycles Per Minute | 2,000 |
| Base Plate Dimensions | 12″x26″ |
| Weight | 350 lbs |
| Download Brochure | |

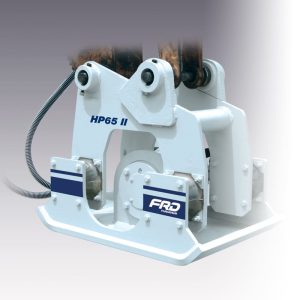

HP65 II (18"/24")
| Impulse Force | 6,500 lbs |
| Cycles Per Minute | 2,000 |
| Base Plate Dimensions | 18″x34″ / 24″x34″ |
| Weight | 743 / 850 lbs |
| Download Brochure | |

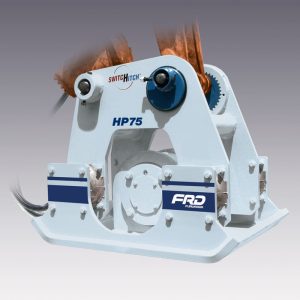

HP75
| Impulse Force | 7,800 lbs |
| Cycles Per Minute | 2,000 |
| Base Plate Dimensions | 24″x34″ |
| Weight | 850 lbs |
| Download Brochure | |

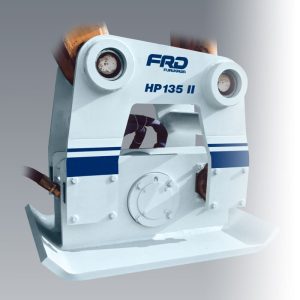

HP135 II
| Impulse Force | 13,500 lbs |
| Cycles Per Minute | 2,000 |
| Base Plate Dimensions | 28″x40″ |
| Weight | 1,335 lbs |
| Download Brochure | |

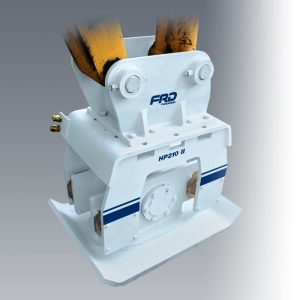

HP210 II
| Impulse Force | 21,000 lbs |
| Cycles Per Minute | 2,000 |
| Base Plate Dimensions | 34″x46″ |
| Weight | 2,150 lbs |
| Download Brochure | |
Why Choose FRD-Furukawa Plate Compactors?
High Impulse Force — Up to ~21,000 lbs of impulse force on larger models (HP 210 II), plus consistent impact performance across the HP line.
Uniform Vibration Rate — All HP models operate around 2,000 cycles per minute, offering steady compaction and dependable cycle consistency.
Hydraulic-Driven Boom Mounted — Designed for carrier machines, these compactor/ drivers mount on the boom of excavators/backhoes/mini-excavators, giving reach, control, and power. Hydraulic motors with features like cross-over check valves help protect the carrier.
Narrow Trench Friendly — Smaller models like the HP35ME (12″ width) are built for tight spaces where trench boxes or walk-behind compactors are inefficient or inaccessible.
Rugged Construction — Hardened steel plates, durable booms, and shock-absorbing features protect both the tool and the carrier during high-stress operations.
FRD HP Series Plate Spec Highlights
| Model | Impulse Force | Width | Base Plate Size | Weight | Hydraulic Flow Req’d |
|---|---|---|---|---|---|
| HP35ME | ~ 3,000 lbs | 12″ | 12″ × 26″ | ~ 350 lbs | ~ 7.5 GPM |
| HP65 II | ~ 6,500 lbs | 24″ | 24″ × 34″ | ~ 850 lbs | 12-15 GPM |
| HP75 | ~ 7,800 lbs | 24″ | 24″ × 34″ | ~ 850 lbs | 18-22 GPM |
| HP135 II | ~ 13,500 lbs | 28″ | 28″ × 40″ | ~ 1,335 lbs | 30 GPM |
| HP210 II | ~ 21,000 lbs | 34″ | 34″ × 46″ | ~ 2,150 lbs | 48 GPM |
Impulse force is the peak force delivered during each vertical compaction strike. Higher impulse helps compact heavier materials or deeper fill. In the FRD HP series, it ranges from ~3,000 lbs (HP35ME) up to ~21,000 lbs (HP210 II).
Yes. FRD includes rubber shock absorbers and hydraulic check valves to reduce vibration transmission into the excavator or carrier arm, helping extend service life.
For narrow trenches or confined spaces, lighter & narrower models like the HP35ME are ideal. For broader foundation slabs or larger footprint compaction, the HP135 II or HP210 II offer more force and plate area.
Depending on the model: pressures are typically in the 1,800-2,000 PSI range, with hydraulic flow varying from ~7.5 GPM up to ~48 GPM. Match your carrier’s hydraulic output accordingly.
Yes. FRD offers different hanger brackets like SwitchHitch, Floating Boss, or OEM pin configurations to simplify mounting. Many HP models can accept optional bolt-on top caps or brackets.
quickly connect to specific OEM mounting systems
