Kobelco Expands Its Demolition Excavator Lineup with the SK650DLC-11
Demolition work demands more from an excavator than simply digging power. Contractors need reach, stability, attachment capacity, jobsite visibility, and a machine that can be configured for different stages of a demolition project. Just as importantly, that machine still needs to be transported and assembled efficiently when moving from one project to the next.
Kobelco is expanding its purpose-built Demolition Excavators with a new machine designed around those challenges: the Kobelco SK650DLC-11 High Reach Excavator.
The new SK650DLC-11 is an approximately 80-ton demolition excavator powered by a 463-horsepower Isuzu engine. With four available front configurations, a maximum pin height of 92 feet 7 inches, tool capacity reaching 13,450 pounds in its Separate Boom configurations, and a hydraulic variable undercarriage, the new machine brings considerable versatility to Kobelco’s demolition lineup.
More importantly, the SK650DLC-11 fills an important position between Kobelco’s smaller demolition machines and the massive SK1300DLC-11, giving demolition contractors another purpose-built option for high-reach work.
As a Kobelco dealer, Tracey Road Equipment is excited to see the company’s demolition lineup continue to grow. Let’s take a closer look at what the new SK650DLC-11 brings to the jobsite.
Demolition Excavators Get a New Addition

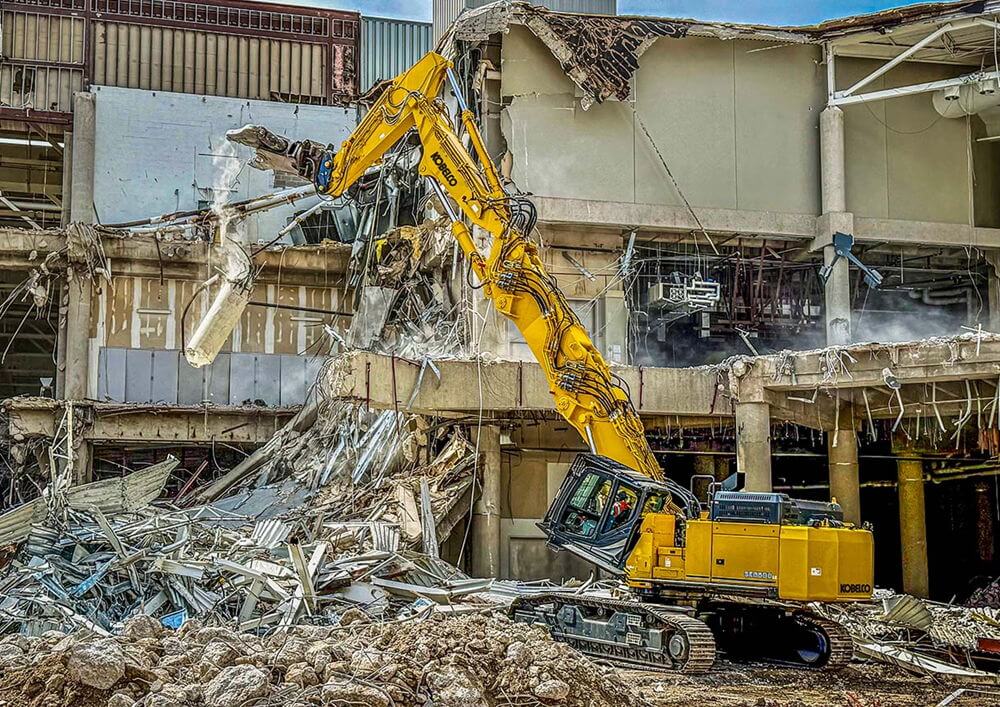

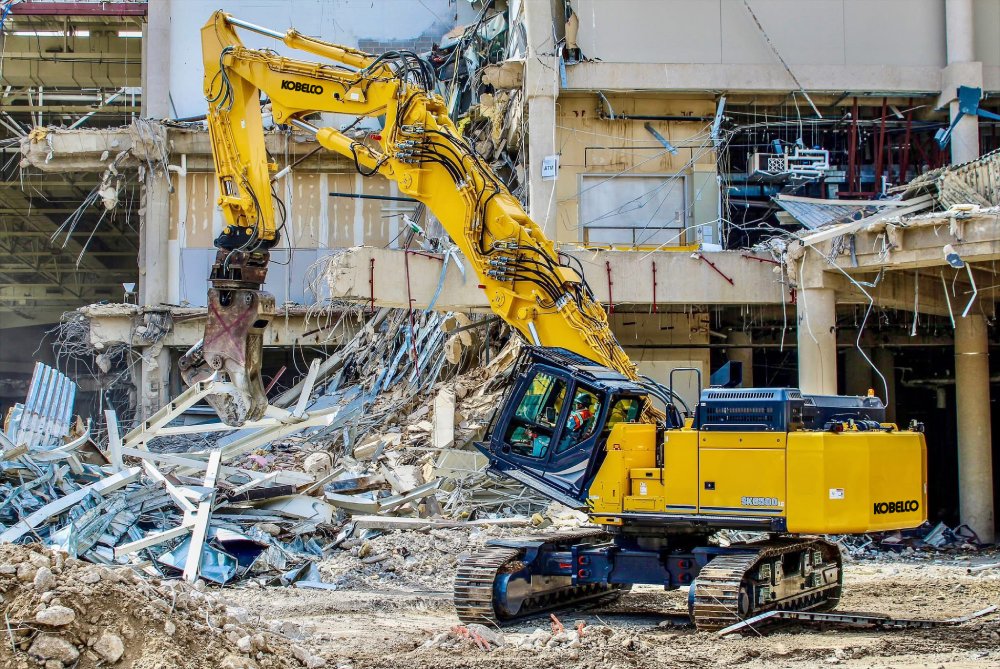

The Kobelco SK650DLC-11 is a purpose-built powerhouse engineered specifically for demanding building demolition applications. Designed with Kobelco’s advanced NEXT attachment system, it allows for quick, safe assembly and disassembly of high-reach and standard configurations—maximizing uptime and jobsite flexibility.

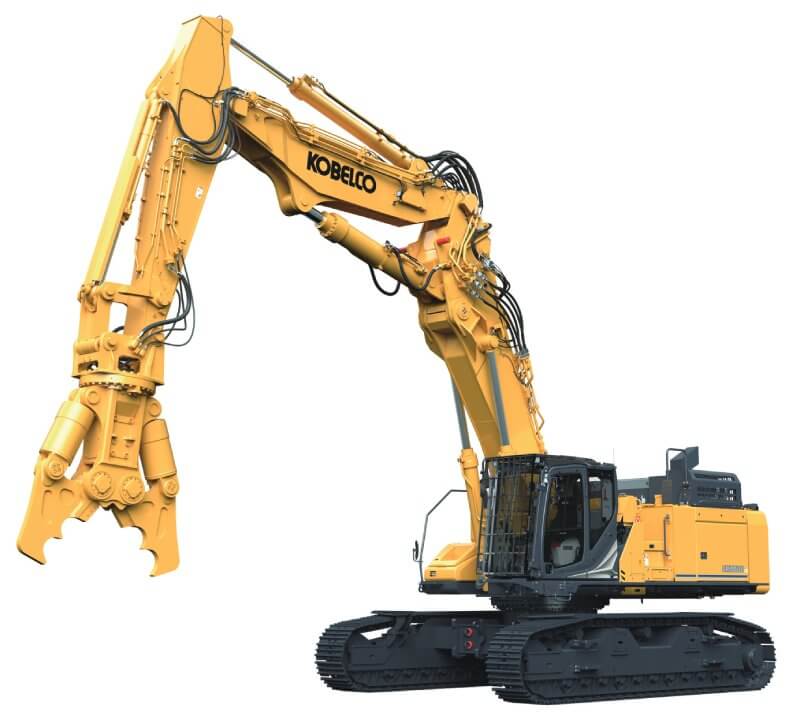

Meet the Kobelco SK650DLC-11
The Kobelco SK650DLC-11 was engineered specifically for demanding building demolition rather than being a conventional excavator modified for demolition work.
At its core is a 463-horsepower Isuzu Tier 4 Final engine. Depending on its configuration, operating weight ranges from approximately 166,400 to 178,100 pounds.
Some of the key specifications include:
| Specification | Kobelco SK650DLC-11 |
|---|---|
| Engine Power | 463 hp |
| Operating Weight | 166,400–178,100 lbs. |
| Maximum Pin Height | 92 ft. 7 in. |
| Maximum Tool Weight | 13,450 lbs. |
| Overall Width | 14 ft. 10 in. |
| Tail Swing Radius | 13 ft. 1 in. |
| Swing Speed | 4 rpm |
| Swing Torque | 139,000 lb.-ft. |
| Fuel Capacity | 190.2 gal. |
The numbers tell only part of the story. The biggest advantage of the SK650DLC-11 is how Kobelco allows contractors to configure the same base machine for very different demolition applications.
Four Configurations, One Demolition Excavator
Demolition doesn’t happen entirely at the top of a building. After high-reach work is complete, contractors still need to process material, work closer to ground level, remove foundations, and complete other heavy demolition tasks.
Kobelco addresses this with a multi-configuration attachment system that allows the Separate Digging Boom or 3-Piece High-Reach Attachment to work with a shared main boom.
Four primary configurations are available:
Separate Digging Boom: Provides a pin height of approximately 50 feet 2 inches and can handle tools weighing up to 13,450 pounds.
Separate Digging Boom with Insert Boom: Extends pin height to approximately 59 feet 9 inches while retaining the maximum 13,450-pound tool capacity.
3-Piece High-Reach Attachment: Provides approximately 83 feet of pin height and supports tools weighing up to 8,160 pounds.
3-Piece High-Reach Attachment with Insert Boom: Extends maximum pin height to an impressive 92 feet 7 inches while supporting tools weighing up to 8,160 pounds.
This flexibility means contractors don’t necessarily need one machine for high-reach demolition and another for heavier work closer to the ground. The SK650DLC-11 can be reconfigured as the project progresses.
Nearly 93 Feet of High-Reach Capability
The headline number for the SK650DLC-11 is its 92-foot-7-inch maximum pin height.
With the 3-Piece High-Reach Attachment and Insert Boom installed, the machine can reach upper portions of taller structures while carrying an attachment weighing up to 8,160 pounds.
For demolition contractors, reach and tool capacity have to work together. A machine that reaches high but can’t carry the attachment required for the material being demolished has limited usefulness.
The SK650DLC-11 is designed to balance the two.
When greater tool weight becomes the priority, contractors can move to a Separate Boom configuration and handle attachments weighing as much as 13,450 pounds.
That gives the machine flexibility throughout different phases of structural demolition.
A Hydraulic Variable Undercarriage
Stability is critical when operating a demolition attachment dozens of feet above the ground. Transportation is equally important when an approximately 80-ton machine needs to move between jobsites.
The SK650DLC-11 addresses both with a hydraulic variable undercarriage developed for demolition applications.
For transportation, the undercarriage can retract to approximately 10 feet 6 inches wide. At the jobsite, it expands to approximately 13 feet 9 inches, providing a wider working footprint for increased stability.
The undercarriage can extend and retract while the machine remains on the ground, without requiring hydraulic hose reconnection or bolting during the process.
This is a good example of how purpose-built demolition equipment differs from a standard excavator. Kobelco isn’t only thinking about how the machine performs while tearing down a structure. It is also considering how contractors get the machine to the job and prepare it for work.

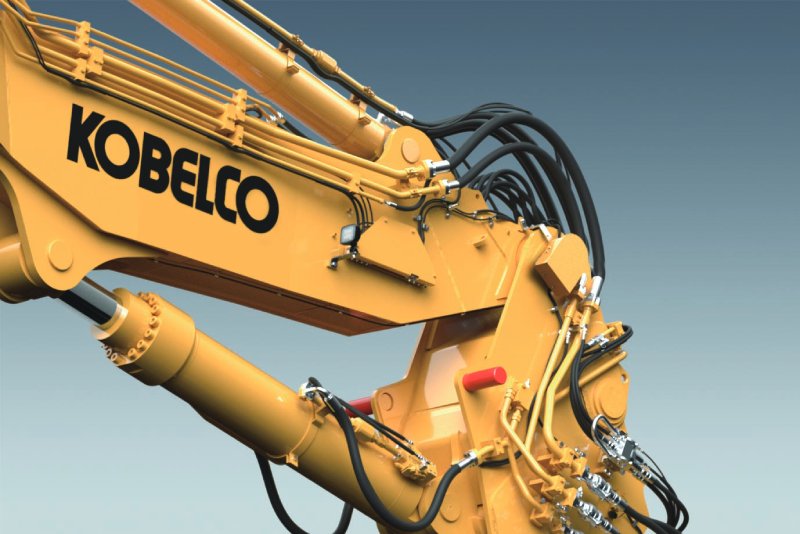

Easier Assembly and Attachment Changes
A high-reach demolition excavator requires significant components to be assembled and removed for transportation. Reducing the time and complexity involved can help contractors get the machine working sooner.
Kobelco’s attachment joint system is designed to simplify connection between the main boom and front attachment. The upper pin can first be hooked into position before the lower connection is secured hydraulically.
A one-touch, bayonet-style connection mechanism also connects the main boom and front attachments without tools.
The 3-Piece High-Reach Attachment uses a cross-cylinder structure that reduces transport height and improves access to tie-down points. Attachment stands serve double duty as storage stands and work platforms, giving operators a better position for checking the upper pin and connection hook during assembly and removal.
Together, these features are designed to make a very large, specialized excavator more practical to move and reconfigure.
Removable Counterweight Simplifies Transport
Transporting a machine this size involves more than retracting the undercarriage.
The SK650DLC-11 also features a removable counterweight. With the counterweight removed, machine weight can be reduced to approximately 109,000 pounds for transportation.
An optional hydraulic counterweight removal system allows the counterweight to be installed or removed by one person. Depending on the jobsite and transportation setup, that can help reduce labor requirements and the need for additional lifting support.
For demolition contractors regularly moving specialized equipment between projects, features that simplify breakdown and assembly can have a real effect on uptime.

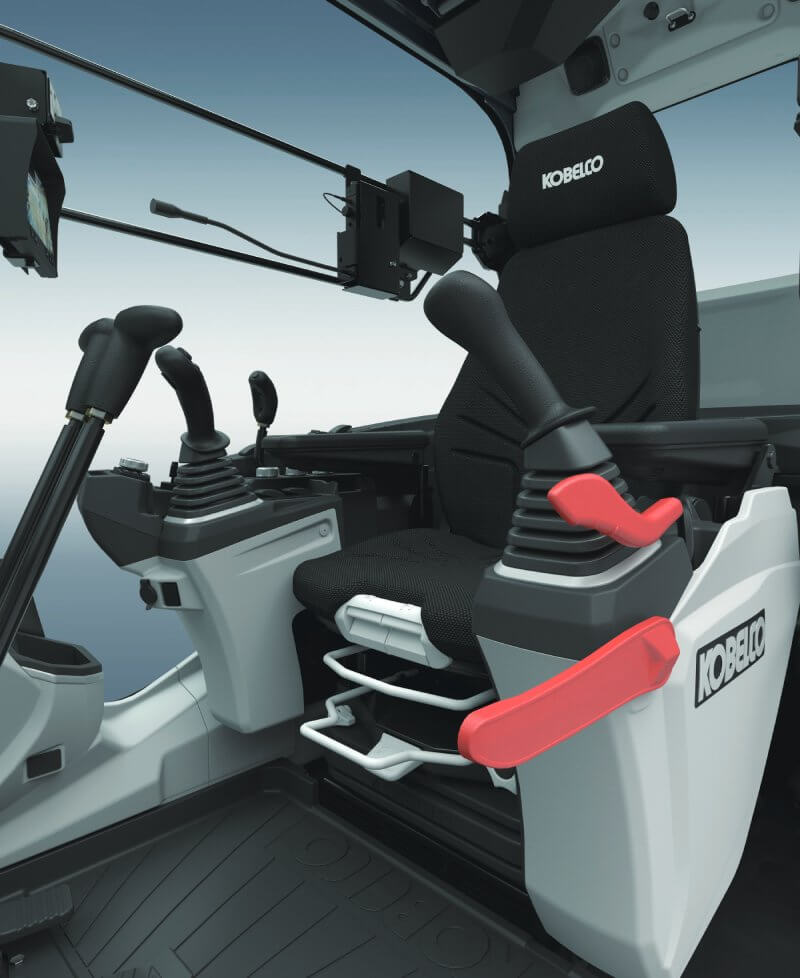

A Cab Designed Specifically for Demolition
Working at height creates a very different visibility challenge than conventional excavation.
The SK650DLC-11 uses a demolition-specific cab capable of tilting up to 30 degrees, helping the operator maintain a better view of the attachment and structure during high-reach work.
The cab also incorporates several demolition-focused protection and visibility features, including P5A front and top glass, Level II protection, and a falling-object deflector.
Inside, a 10-inch color monitor provides machine information along with views from left, right, and rear cameras. A jog dial simplifies navigation through the machine menus.
Operator comfort features include an air-suspension heated seat, air conditioning, Bluetooth hands-free radio, charging port, and a tilting left console designed to make entering and exiting the cab easier.
Kobelco also includes an emergency manual cab-lowering valve, an important consideration when the cab is operating in its tilted position.
Technology Designed Around Demolition Safety
High-reach demolition requires operators to constantly understand the position of the machine, attachment, and work tool.
The SK650DLC-11 includes a cab interference prevention system that alerts the operator and prevents the work tool from contacting the cab. Multiple tools can be programmed and stored within the system.
A separate stability warning system monitors both longitudinal and horizontal machine stability. It displays attachment posture, working height, and working radius, while providing continuous audible warnings if machine stability becomes compromised.
These systems don’t replace proper training, job planning, or safe operating procedures, but they give the operator additional information while managing a large attachment at significant working heights.
More Features for Demanding Demolition Work
Kobelco has also equipped the SK650DLC-11 with several features designed specifically around productivity, maintenance, and demolition applications.
Available and standard equipment includes systems such as a water spray system for dust control, electronic onboard lubrication, quick-hitch piping, boom and arm safety valves, a reversible fan, and in-cab hydraulic pressure release.
An ECO Mode gives operators an option for reducing fuel consumption when maximum output isn’t required.
When using the Separate Boom Attachment, an Unlimited Power Boost Mode provides additional performance for demanding close-range demolition work.
Together, these features reinforce that the SK650DLC-11 isn’t simply a large excavator with a longer boom. It has been engineered around the requirements of professional demolition contractors.
How the SK650DLC-11 Fits Into Kobelco's Demolition Excavator Lineup
The introduction of the SK650DLC-11 fills an important gap in Kobelco’s growing North American demolition range.
Kobelco currently offers purpose-built demolition machines including:
SK300 and SK350 Straight Boom Excavators: Designed for demolition applications where additional reach and a straight boom configuration are useful without moving into a large high-reach machine.
SK350D High Reach: A smaller high-reach demolition option that gives contractors specialized demolition capability in a more manageable machine class.
SK650DLC-11 High Reach: The newest addition, providing significantly greater reach and attachment capacity while remaining below Kobelco’s largest demolition machine.
SK1300DLC-11 High Reach: The heavyweight of the lineup, powered by a 512.3-horsepower engine and reaching an operating weight of roughly 300,000 pounds depending on configuration.
The SK650DLC-11 therefore occupies an important middle position.
For projects that exceed the capabilities of the SK350D but don’t require the extreme size and reach of the SK1300DLC-11, the new machine provides another option.
That matters because demolition equipment isn’t one-size-fits-all. The right machine depends on building height, structural materials, attachment requirements, available working space, transportation considerations, and the different phases of the project.
Why Purpose-Built Demolition Excavators Matter
Demolition places stresses on equipment that are very different from normal excavation.
Machines may need to handle heavy processors and shears at height, operate around falling debris, maintain stability through changing working radiuses, and provide operators with visibility toward the upper floors of a structure.
Purpose-built Demolition Excavators address those requirements from the beginning.
With the SK650DLC-11, features such as the tilting demolition cab, variable undercarriage, multiple front configurations, attachment connection system, stability monitoring, protective structures, and removable counterweight are all part of the overall machine design.
For contractors specializing in demolition, that purpose-built approach can provide greater versatility than adapting a conventional excavator to work it wasn’t originally designed to perform.
Kobelco Demolition Excavators at Tracey Road Equipment
The new Kobelco SK650DLC-11 expands an already specialized demolition lineup and gives contractors another option between Kobelco’s smaller demolition excavators and the massive SK1300DLC-11.
Its combination of nearly 93 feet of maximum pin height, tool capacities reaching 13,450 pounds, four front configurations, a variable undercarriage, and purpose-built demolition technology allows one base machine to adapt as a project moves from high-reach structural work to heavier demolition closer to the ground.
As a Kobelco dealer, Tracey Road Equipment can help customers explore Kobelco Demolition Excavators and determine which machine and configuration best matches their applications.
